High Precision Synchro-fly Sheeter

CHM-SGT1400/1700 High Precision Twin Rotary Sheeter features fibre-less and clean cuts with high dimensional precisions. Best for board paper, RAT paper, kraft paper and packing paper or board etc.

  • Hydraulic shaft-less unwind station
  • Auto web guide system
  • Electric de-curl unit
  • High precision synchronic-fly cutting unit
  • Auto Jogger System
  • Electric control system

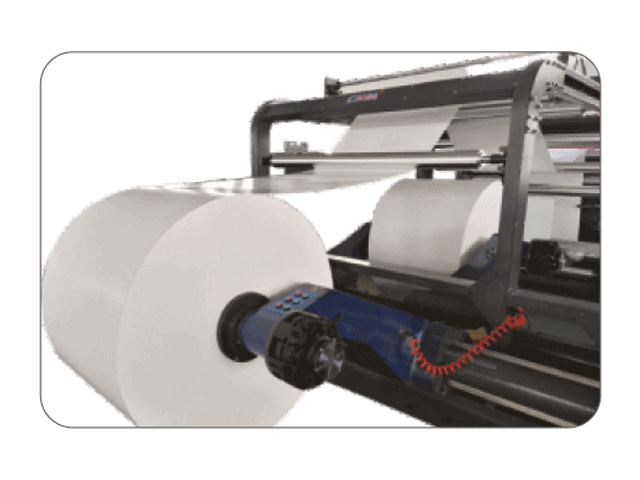

Hydraulic Shaft-less unwind Station

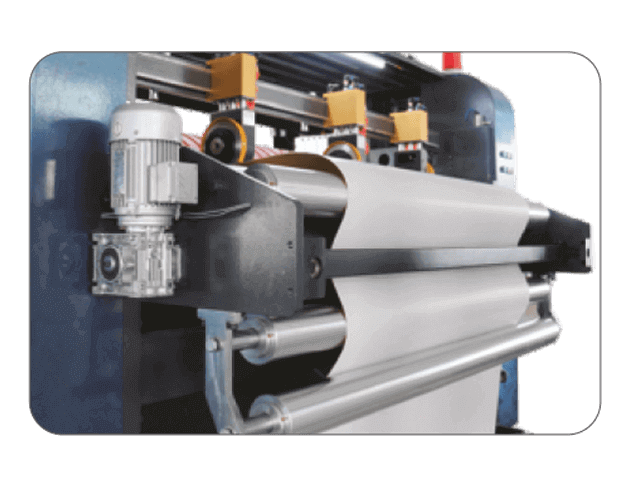

Auto web guide system

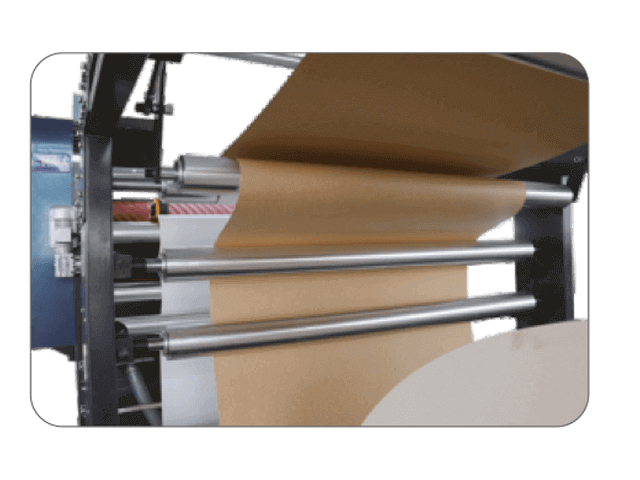

Electric de-curl unit

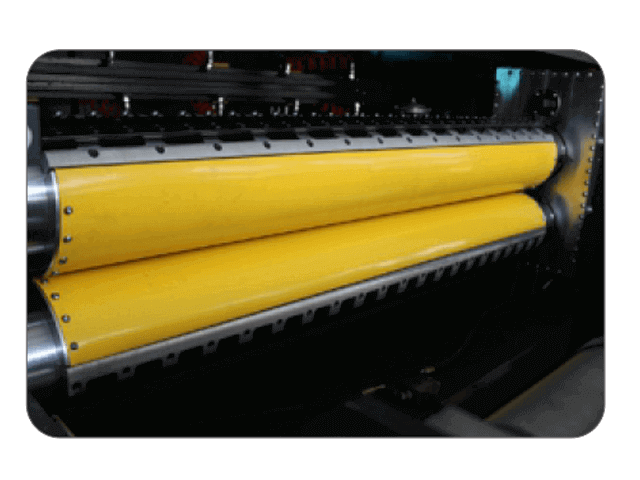

High precision synchronic-fly cutting unit

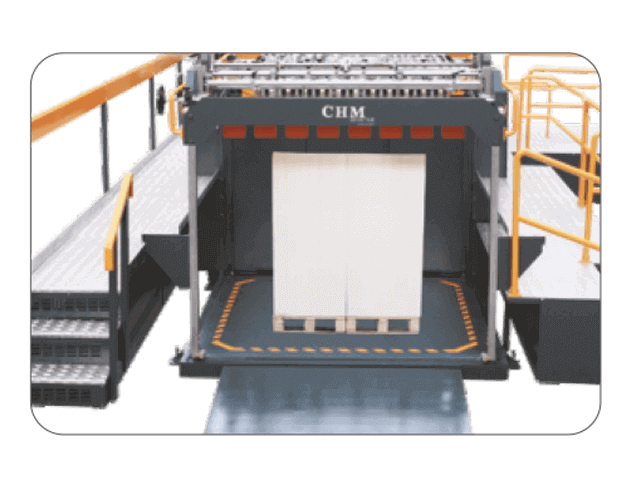

Auto Jogger System

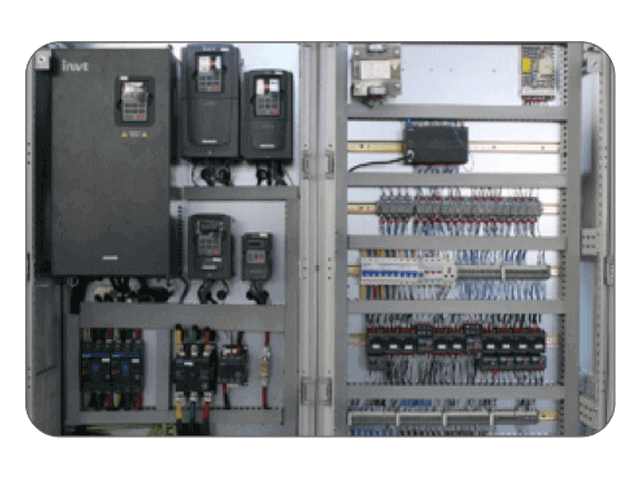

Electric control system

Technical Specification

CHM Type CHM-SGT 1400 CHM-SGT 1700
Cutting Way Top blade rotary , bottom blade rotary
Reference weight of cutting - paper 200-100 GSM 200-100 GSM
Cutting accuracy 0.5 MM 0.5 MM
Max Cutting speed 300 sheets/min 300 sheets/min
Max Cutting meter speed 300 m/min 300 m/min
Cutting length range 50-1650 mm 450-1650 mm
Max scroll diameter 1800 mm 1800 mm
Max paper- cutting width 1300 mm 1300 mm
Max paper- cutting width 1400 mm 1700 mm
Weight 15000 kg 17000 kg
Dimension(L*W*H) 12953 MM X 5120 MM X 2350 MM 12953 MM X 5900 MM X 2350 MM
