Brings you the Best Solution for

Pulp & Paper Industry

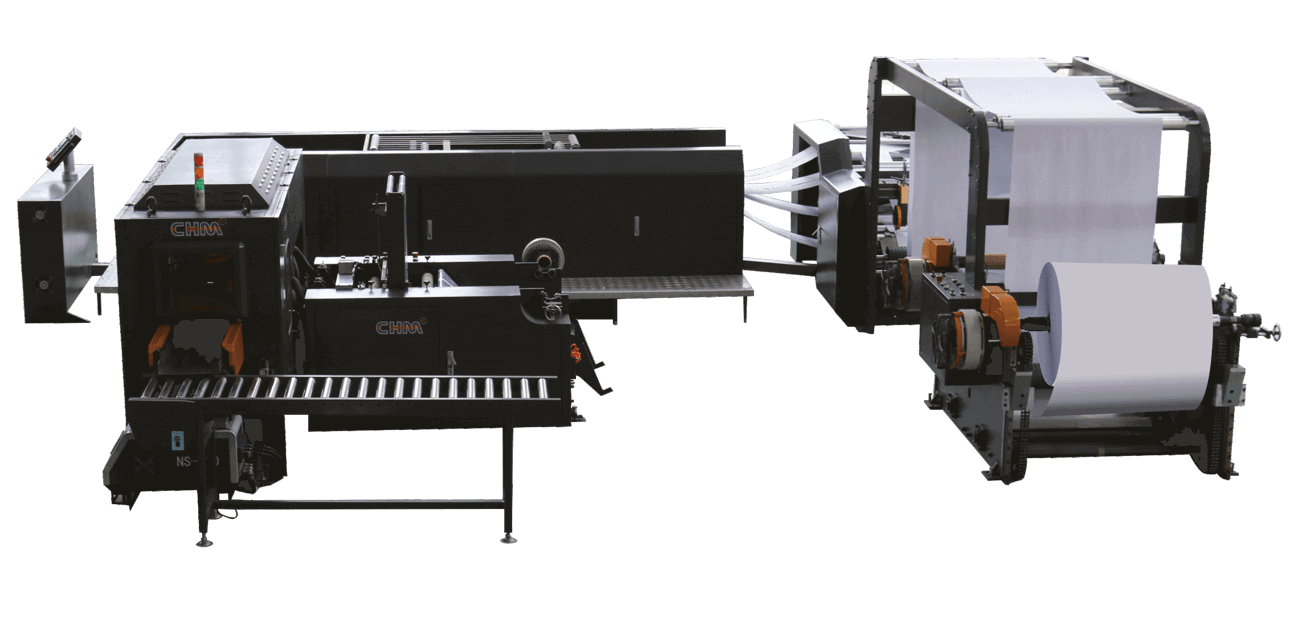

Ream Paper Box Wrapping Machine

Integrates the highly advanced electronics automation, PLC control system and mechanical automation. All-in-one aper conveying, ream paper collection, ream paper counting and collection. Automatic loading, automatic covering, automatic belt, transforms roller paper into packed A4 paper boxes all-in-one.

Technical Specification

Paper Packing Width Gross Width: 310 mm / Net Width: 297 mm
Box Machine Specification 5 Packages/Box 10 Packages/Box
Bottom Cartoon Specification 803 mm X 529 mm 803 mm X 739 mm
Upper Cartoon Specification 472 mm X 385 mm 472 mm X 595 mm
Design Speed Max 5-10 Boxes/Min
Operation Speed Max 7 Boxes/Min
Power Approx (18 KW)
Compressing Air consumption Approx 300 NL/min
Dimension(L*W*H) 14500 mm X 2700 mm X 2000 mm
