Brings you the Best Solution for

Pulp & Paper Industry

A4 cut size sheeting and packaging production line

CHM-A4-4/5. A4 cut size sheeting and packaging production line adopts the most advanced Twin Rotary Knife Synchro-fly Sheeting technologies. Capable of fully automatic ream and box wrapping.

  • Unwind Stand
  • Web guide system

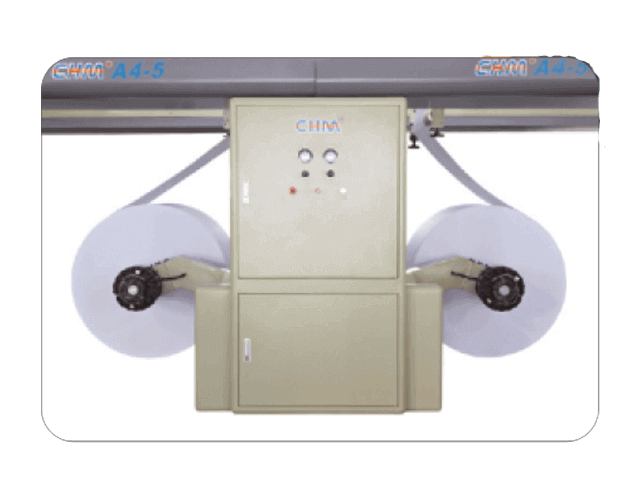

Unwind Stand

Web Guide System

Web Guide System

Technical Specification

CHM Type CHM-A4-4 CHM-A4-5
Paper Width 840-850 MM 840-850 MM
Production Speed Max. 280 m/min Max. 280 m/min
Reference Weight of Cutting - Paper 200-100 GSM 200-100 GSM
Cutting Accuracy 0.2 MM 0.2 MM
Paper Rolls Number 4 Rolls 5 Rolls
Cutting Numbers 4 Cuttings 5 Cuttings
Output of the Ream Max 37 Reams/min Max 47 Reams/min
Power 32KW + 18KW + 19KW 32KW + 18KW + 19KW
Dimension(L*W*H) 20114 MM X 13271 MM X 3190 MM 20114 MM X 13271 MM X 3190 MM
