Brings you the Best Solution for

Pulp & Paper Industry

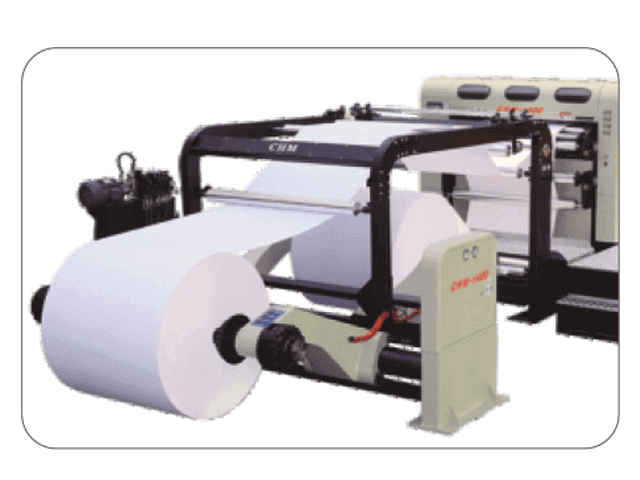

Precision High Speed Sheeter

A servo-driven high speed, high precision and high efficiency sheeter. Capable on wide range of paper, board paper, art paper, kraft paper, etc... Widely used by printing, packaging and paper suppliers.

  • Hydraulic shaft-less unwind station
  • Multi-disc brake
  • High precision single rotary sheet cutter
  • Auto Jogger System
  • Conveyor unit
  • Electric control system
  • Real-time digital control
  • 24-hour working
  • Double inverters
  • Compatible with the enterprise ERP system

Hydraulic Shaft-less unwind Station

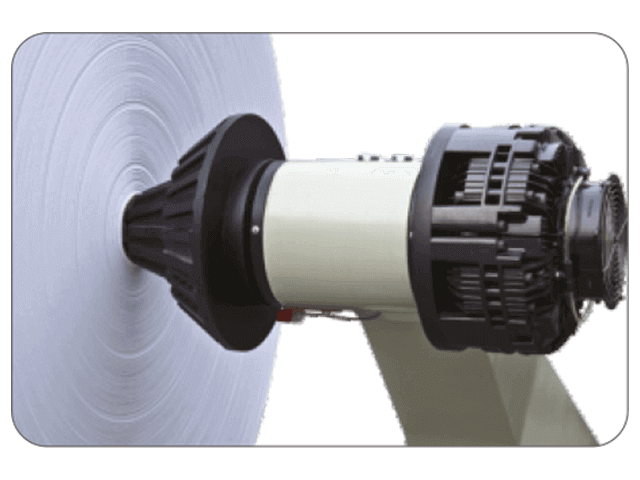

Multi-disc Brake

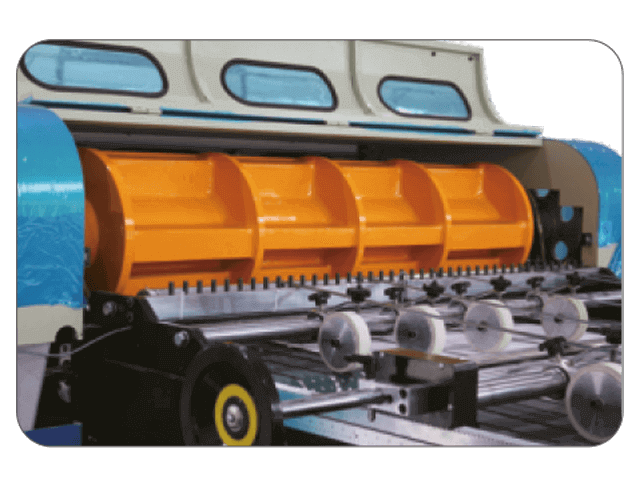

High Precision Single Rotary Sheet Cutter

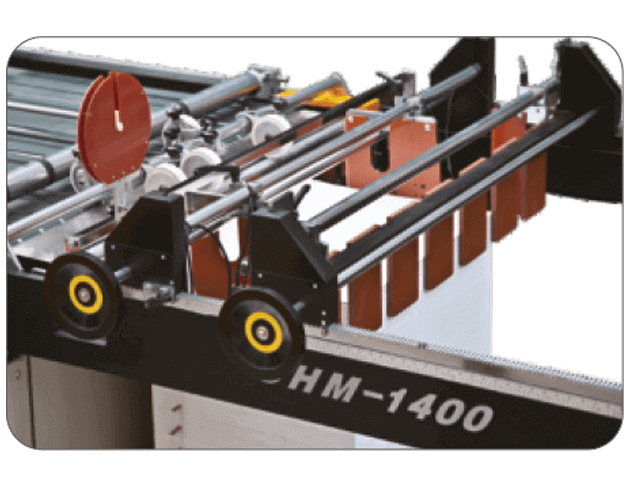

Auto Jogger System

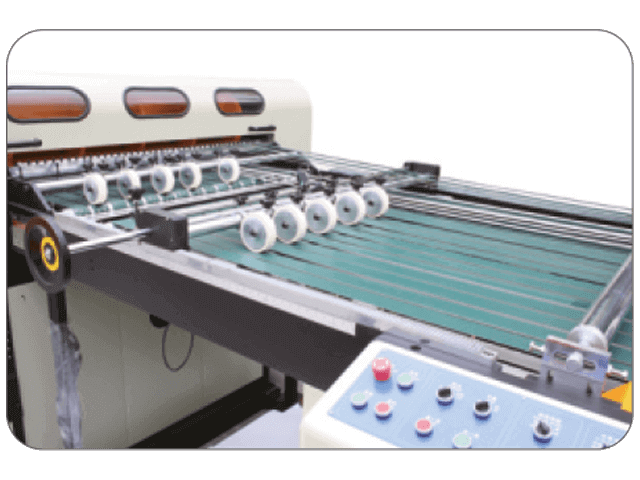

Conveyor unit

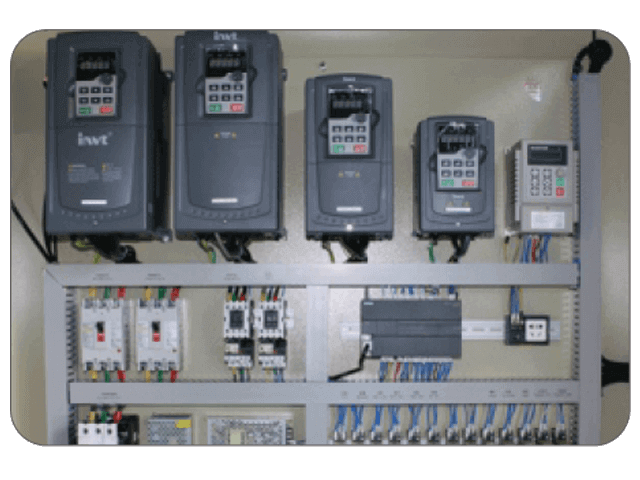

Electric control system

Technical Specification

CHM Type CHM 1400 CHM 1700 CHM 1900
Cutting Way Top blade rotary , bottom blade rotary
Reference weight of cutting - paper 60-50 GSM 60-50 GSM 60-50 GSM
Cutting accuracy 0.5 MM 0.5 MM 0.5 MM
Max Cutting speed 300 sheets/min 300 sheets/min 300 sheets/min
Cutting length range 450-1650 mm 450-1650 mm 450-1650 mm
Max scroll diameter 1800 mm 1800 mm 1800 mm
Max paper- cutting width 1300 mm 1300 mm 1300 mm
Max paper- cutting width 1400 mm 1700 mm 1900 mm
Weight 12000 kg 13000 kg 14000 kg
Dimension(L*W*H) 12703 MM X 3783 MM X 2230 MM 12703 MM X 4083 MM X 2230 MM 12703 MM X 4283 MM X 2230 MM
